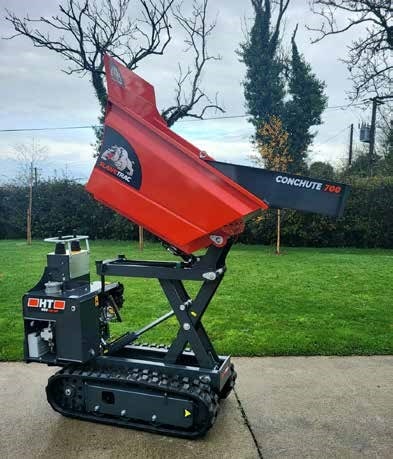

HT690 “The Pup” Track Dumper


This compact track dumper has a maximum width of 690mm and a length of 1650mm. It can turn on its own length offering greater accesibility and maneuverability in urban areas or areas where the larger plant can’t gain access. Complete with hi-tipping capacity, the HT690 patrol track dumper offers a tipping height of 1265mm and easily tips into skips.


With very low ground pressure and rubber tracks the Slanetrac HT690 offers minimum ground damage, while excellent gradability and stability ensure safe operating. The chassis also features smooth ride features to improve the comfort for the operators while in use.

Powered by a Briggs & Stratton 14hp engine, the Slanetrac HT690 dumper offers a great power to carry a payload of 800kg easy and effortlessly

  • High Tip
  • Joystick Control
  • 800kg Capacity
  • Narrow Access 690mm Wide
  • Engine: Briggs and Stratton
  • Power: 14 hp
  • Starting: Electric
  • Hydraulic Drive
  • Fuel Tank: 5.5 ltr
  • Hydraulic Oil Tank: 28 ltr
  • Load Capacity: 1 ton
  • Unladen Weight: 600 kg
  • Contact Pressure: 0.20kg/cm²
  • Speed: 4.5 km/h
  • Gradability: 36% – 50%
