HT1000s Diesel Track Dumper









The Slanetrac HT1000s Diesel Track Dumper is hydraulically driven and comes with braked drive motors.

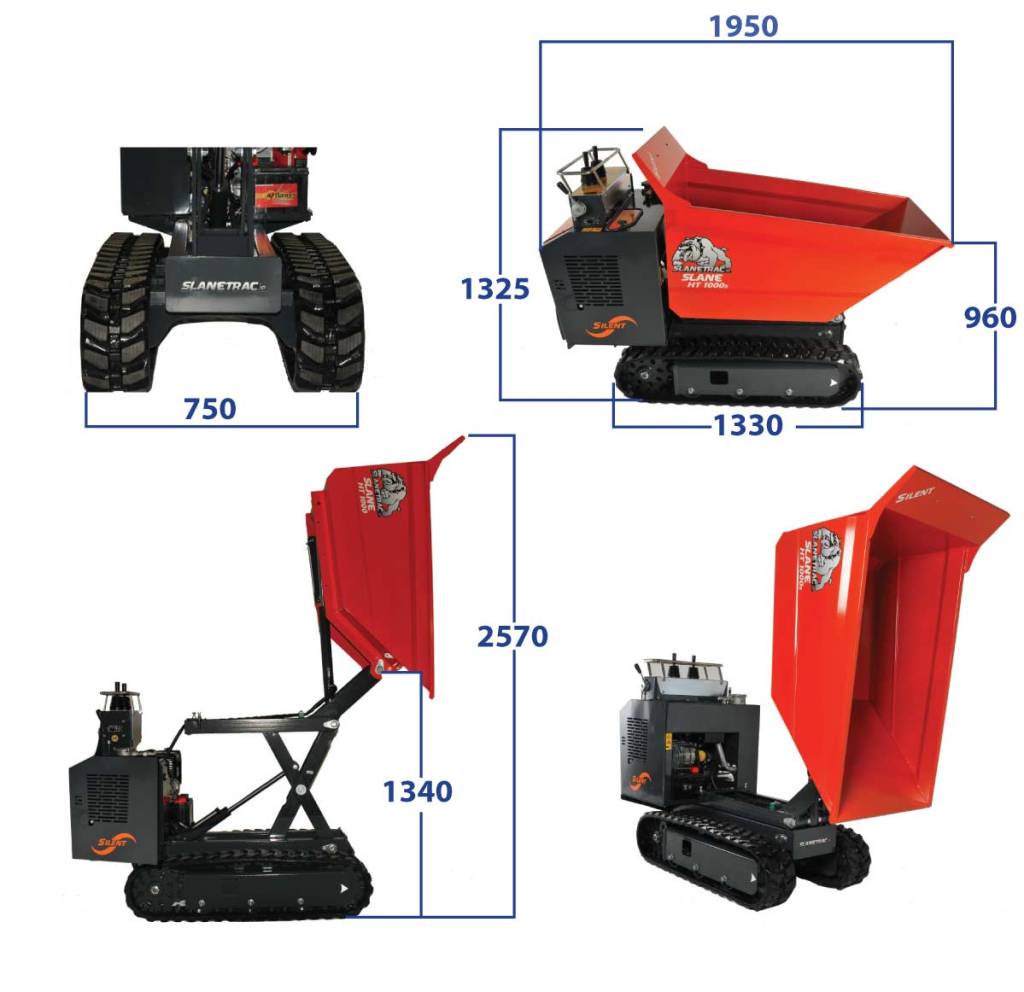

This compact Track Dumper has a maximum width of 750mm and a length of 1900mm.It can turn on its own length offering greater accessibility and maneuverability in urban areas or areas where larger plant can’t gain access.

Complete with hi tipping capacity; the Slanetrac HT1000s Diesel Track Dumper offers a tipping height of 1300mm, and easily tips into skips.

With a very low ground pressure and rubber tracks, the Slanetrac HT1000s offers minimum ground damage, while excellent gradability and stability ensure safe operating of the dumper.

Powered by a Kohler KDW702 16.5hp (12.3kw) electric start, water cooled engine; this robustly built Track Dumper has a load capacity of 1 ton. With a very low ground pressure and rubber tracks the Slanetrac HT1000 offers minimum ground damage while excellent gradability and stability ensure safe operating of the dumper.













  •  Kohler KDW702 Engine
  • High Tip
  • Electric Start
  • Narrow Access – 750mm Wide
  • Joystick Control
  • 1 Tonne Capacity
  • Unladen Weight: 770kg



  • Engine: Kohler KDW702
  • Power: 16.5hp (12.3kw)
  • 2 Cylinder Water Cooled Engine
  • Starting: Electric
  • Hydraulic Drive
  • Low on Emissions & Low on Noise
  • Speed: 4.5 km/h
  • Gradability: 36% – 50%
  • Operating Pressure: 2440 psi (170 bar)
  • Max Pump Flow: 36 ltr/min
  • Fuel Tank: 6.0 ltr
  • Hydraulic Oil Tank: 30 ltr
  • Load Capacity: 1 ton
  • Unladen Weight: 770kg
  • Contact Pressure: 0.30kg/cm²
  • Laden Weight: 1770kg
  • Safety Device: Automatic Engine Roll Over Cut Out
